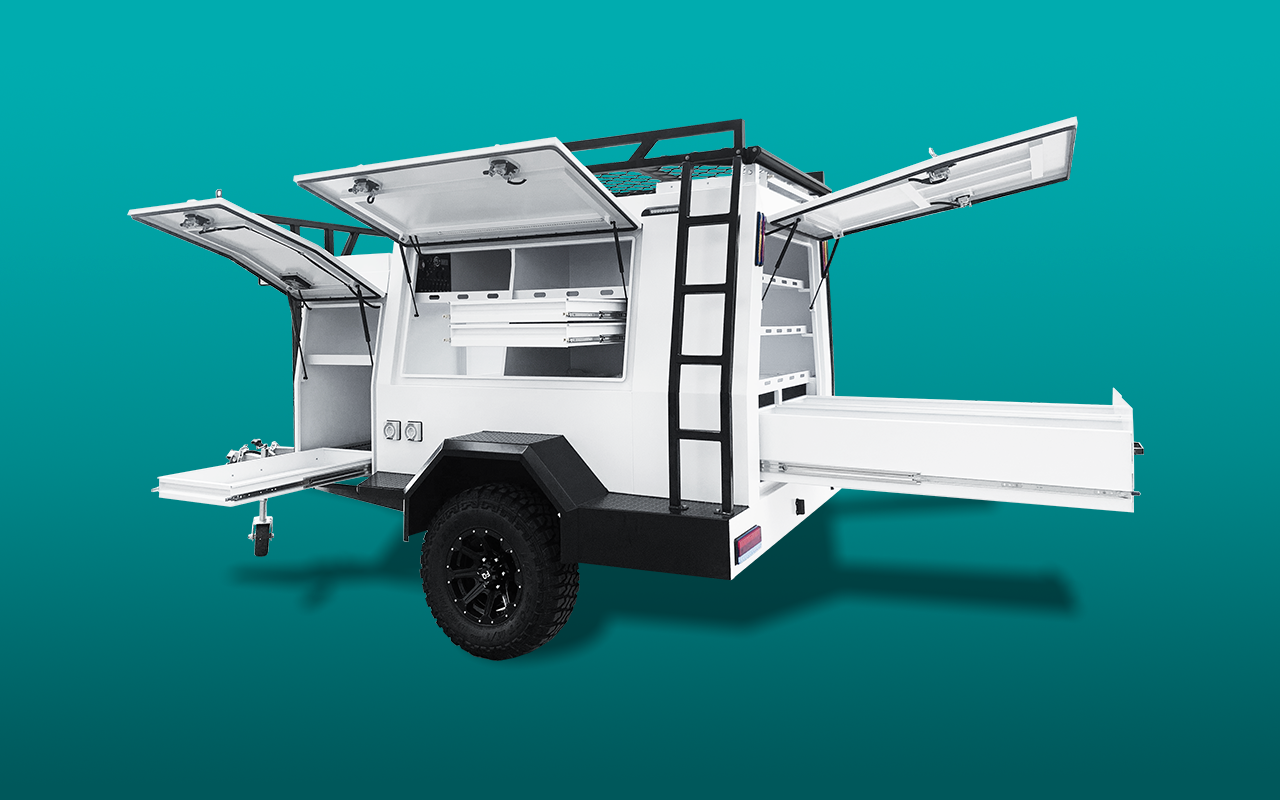

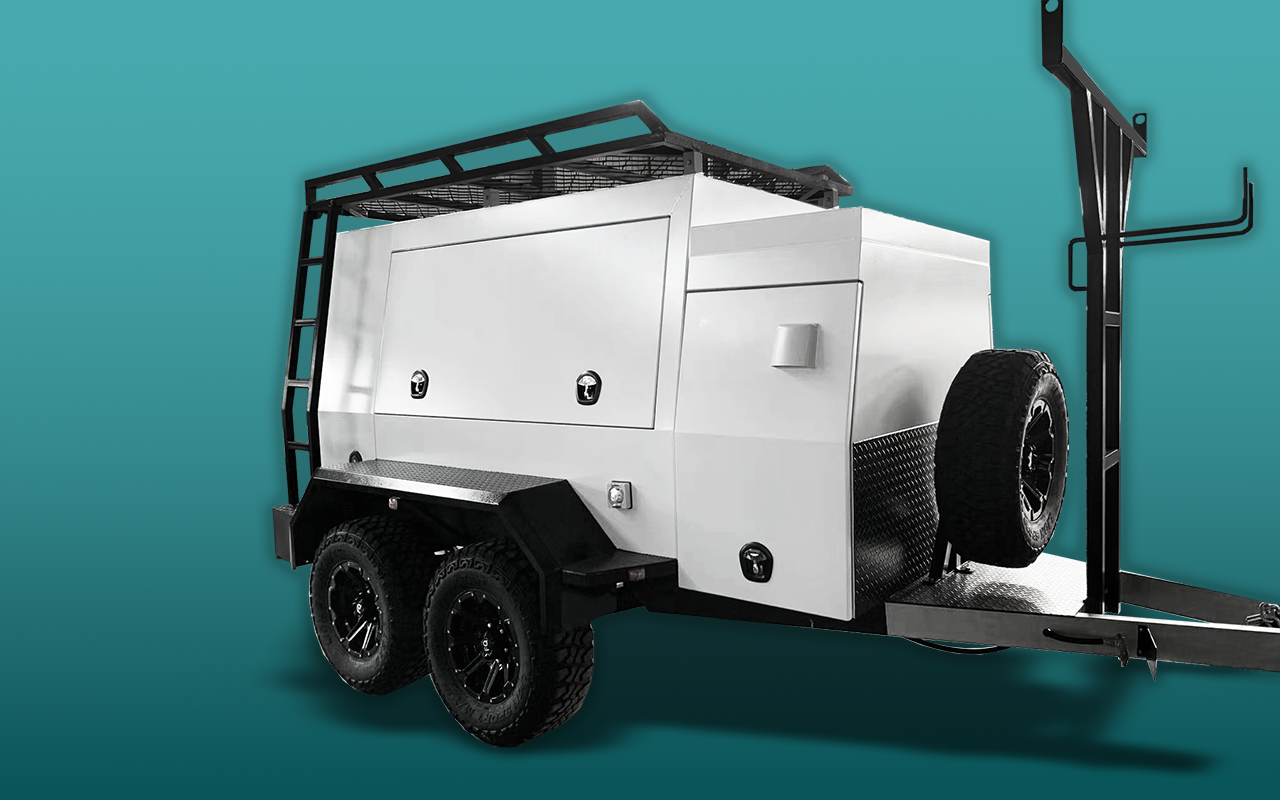

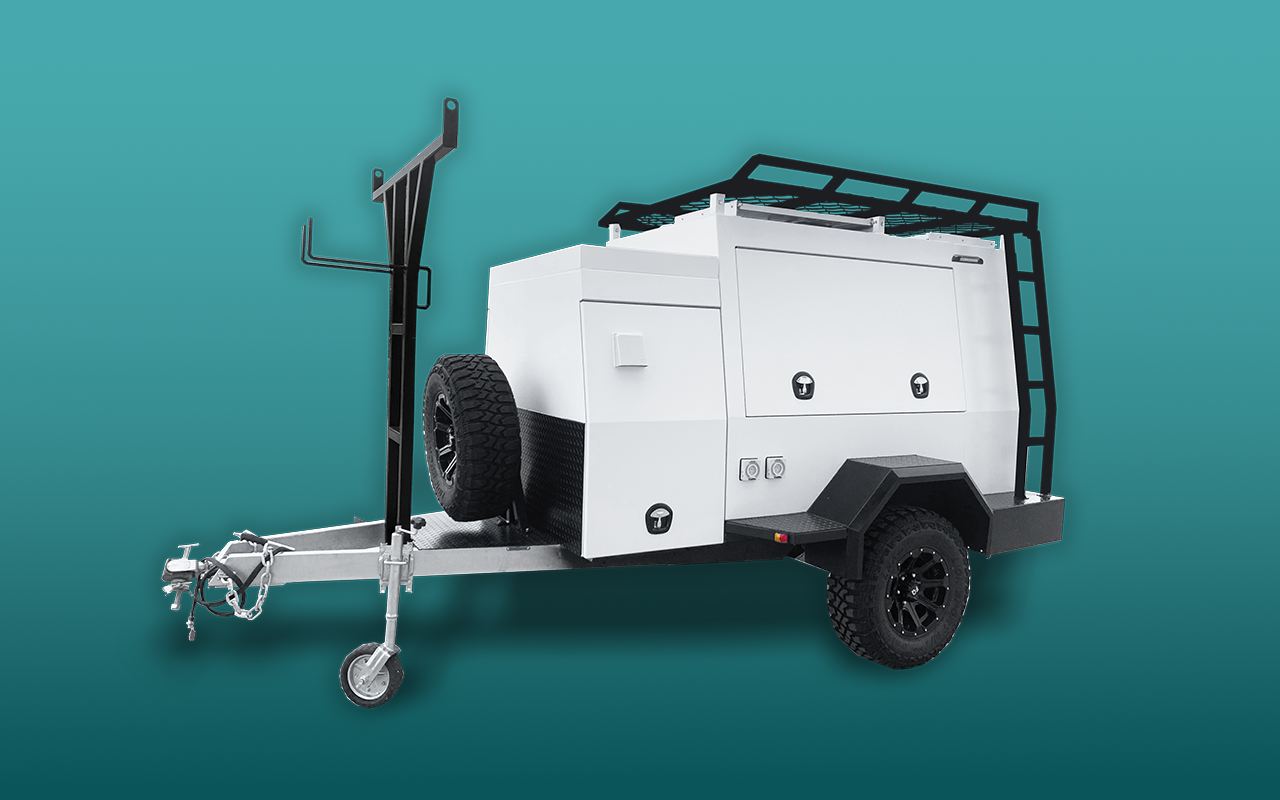

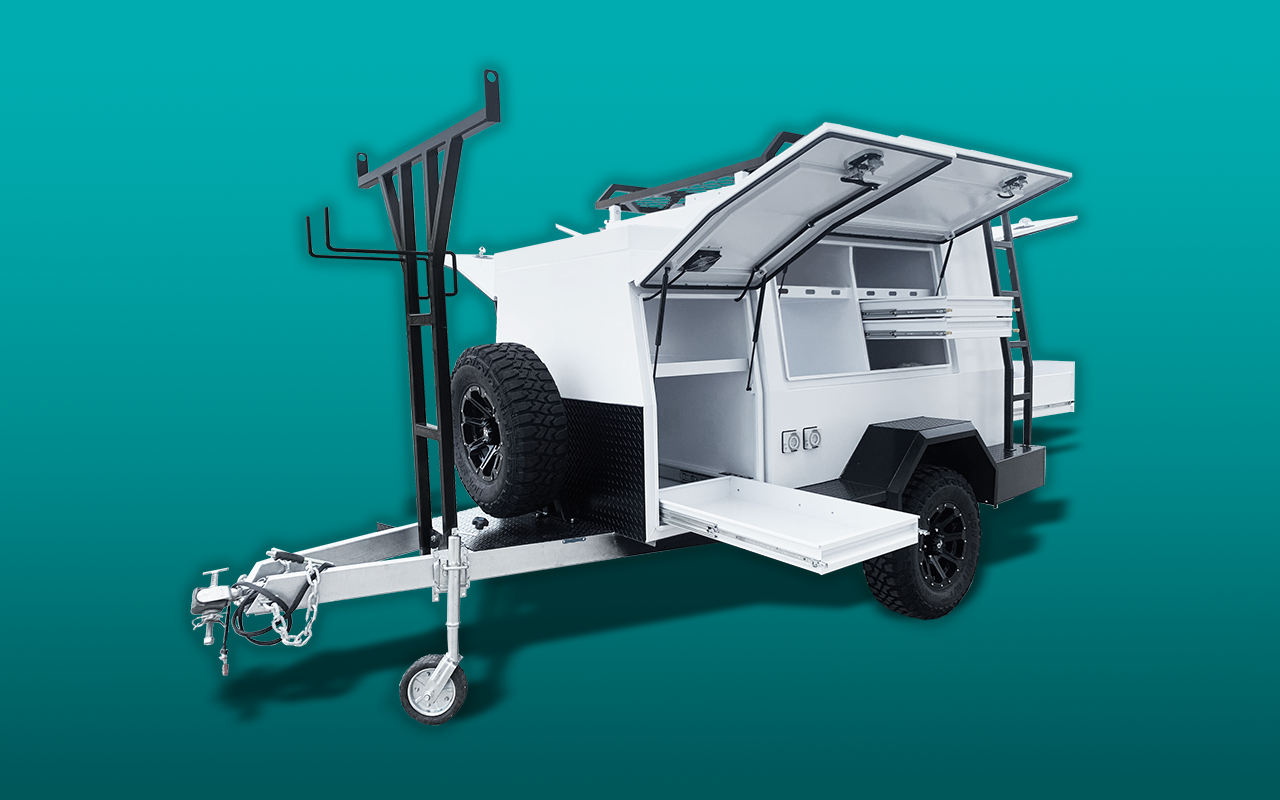

Aluminium Tradesman Trailer TM1 (Single Axle)

Aluminium Tradesman Trailer TM1

with indepentent suspension

Aluminium Tradesman Trailer TM1

independent suspension

A revolutionary publish of tradesman trailer with independent suspension is here to assist our Australian tradesman with next level experience with its fully equipped features.

Key features including solid axles with premium coil suspension system, sealed doors and entrances, is fully prepared and capable for the harshest working condition of Australian terrains.
Standard features in this tradesman trailer incudes full top carry rack, side steps and ladder,  12v/240v systems, lighting, solar panels and battery, internal shelving, partitions, drawers and sliders, remote locking system, water tank with pump and much more.



Price: $23,990 incl. gst



Sizes and Specs

Body size: 2100mmL x 1500mmW x 1320mmH (excludes roof rack)

Overall size: 4250mmL x 2150mmW x 2350mmH

Ground clearance: 600mm

Tare Weight: 1300kg

Ball Weight: 260kg

ATM: 2600kg

Body Color: White

  Standard Configuration

Chassis and Body

Drawbar

120x50x4mm Q345 Tube

Drawbar and Chassis

Galvanized

Plug

7-pin wire connector

Brakes

12” Electric brakes with hand brake

Retainer

ADR approved safety chain x2

Wheels & Tyres

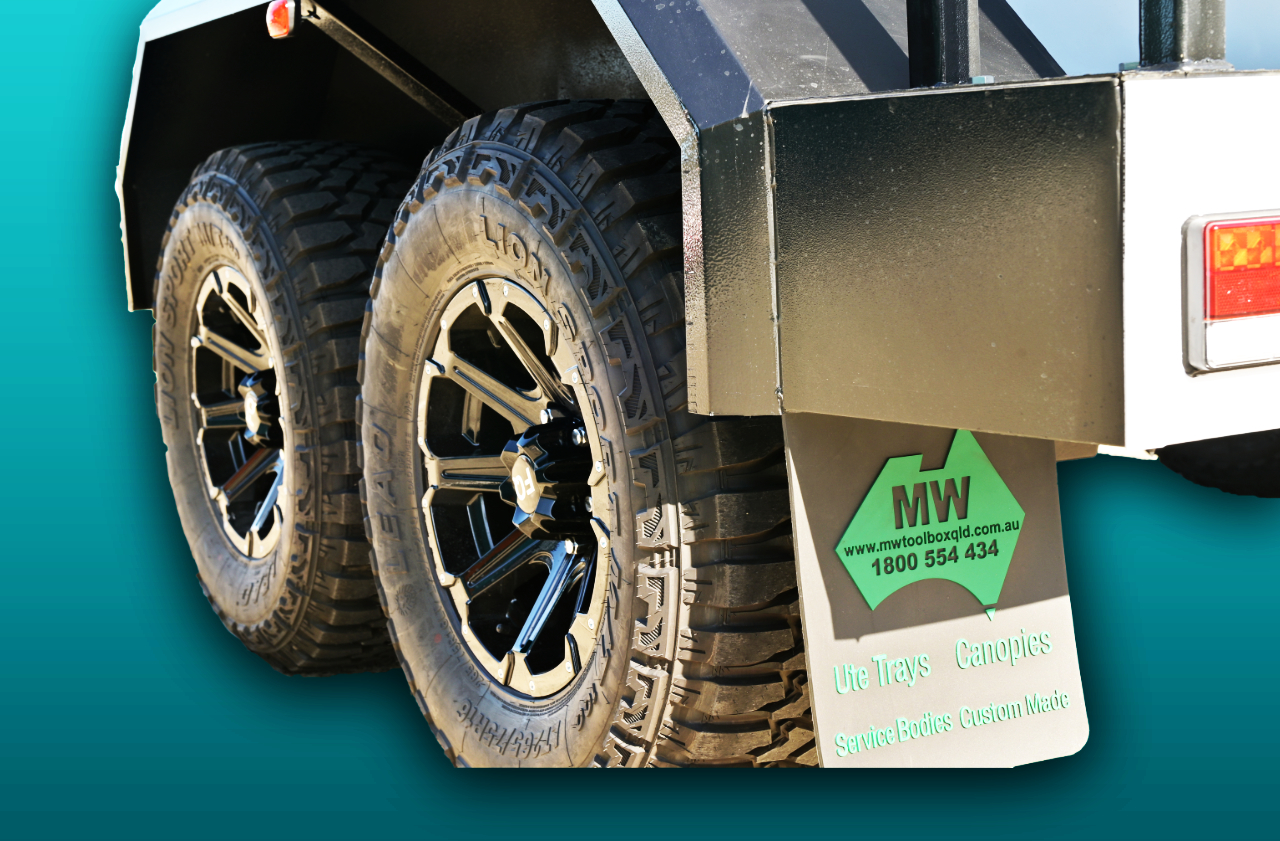

16”alloy wheels with 265/75R16 MT tyres

Mud Guard

Flare Mudguard

Body Material

3.0mm thick heavy duty aluminium

Finish

Powder coated white

Suspension

Independent Suspension

Jockey wheel

Adjustable Guide wheel

Coupling

3000kg poly block off-road Coupling



Water System

Water tank

100L stainless steel water tank

pump

Seaflo water pump

Water outlet

Tap mounted on drawbar







Electrical

Battery

2x 135A Lithium battery

Invertor

Enerdrive 2000W Pure Sine Wave Invertor

Battery charger

lithium battery charger 20A

Solar panels

2x80W solar panels plus 30A solar Regulator

Electric power

12V 240V inlet and outlet

lighting

Internal LED light system and external lights

Tail light

LED Tail lights with high mounted lights



Other Features

One spare wheel (265/75R16)

Full central locking system with remotes

Aluminium carry rack

Two ladders at driver and passenger side

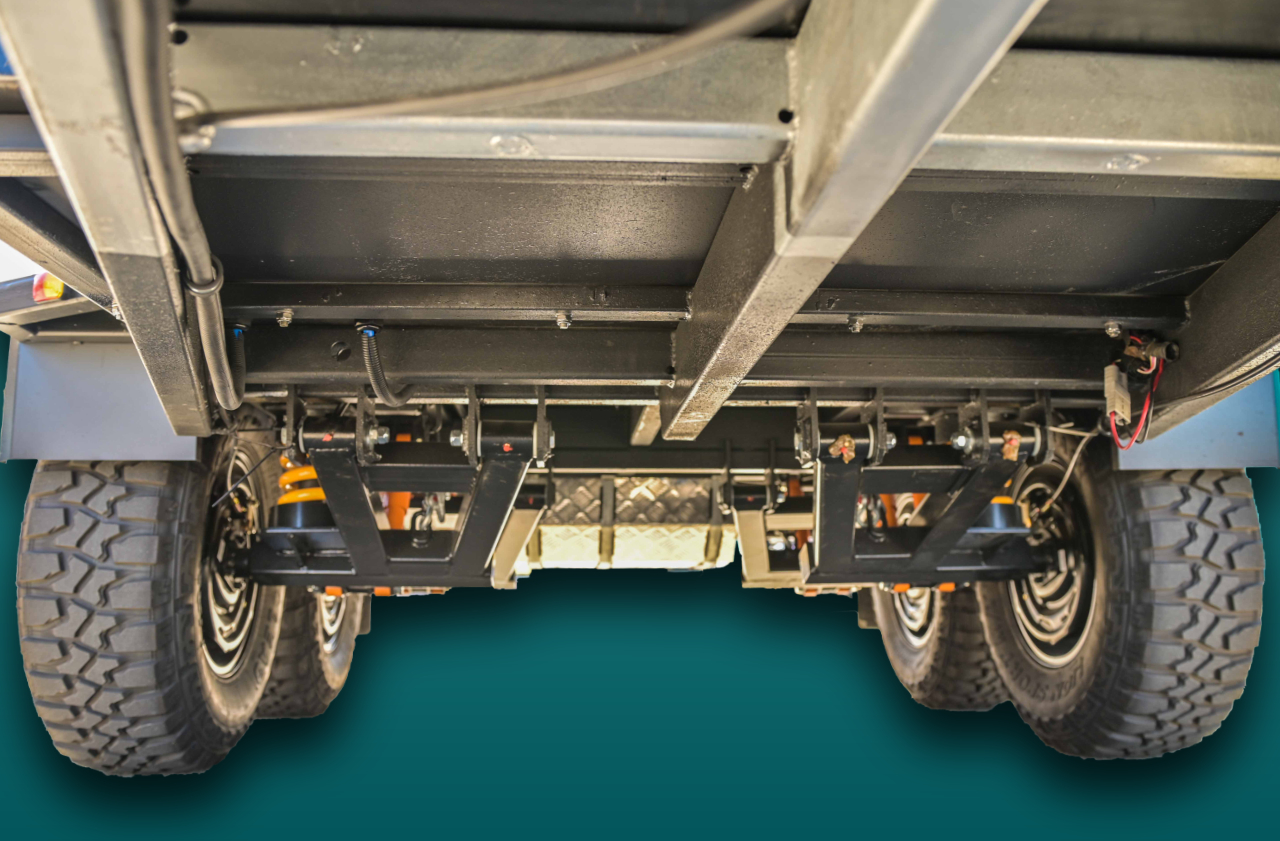

Superior Chassis & Frame

MW Tradesman Trailers are designed and built for all Australian off-road conditions and terrains. Made out of industrial standard 4mm thick galvanized steel through entire chassis frame. Bottom of chassis is fully raptor coated for extreme rust resistance and durability.

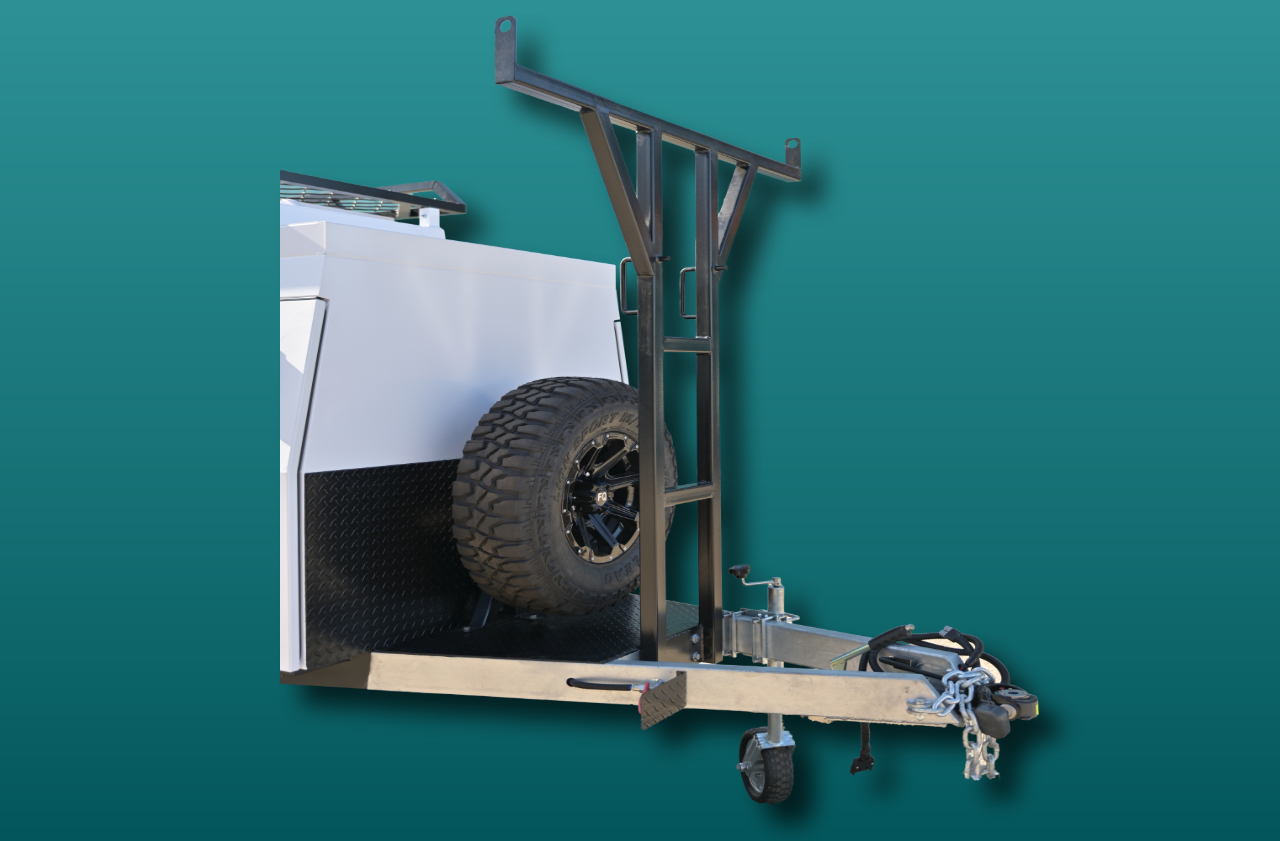

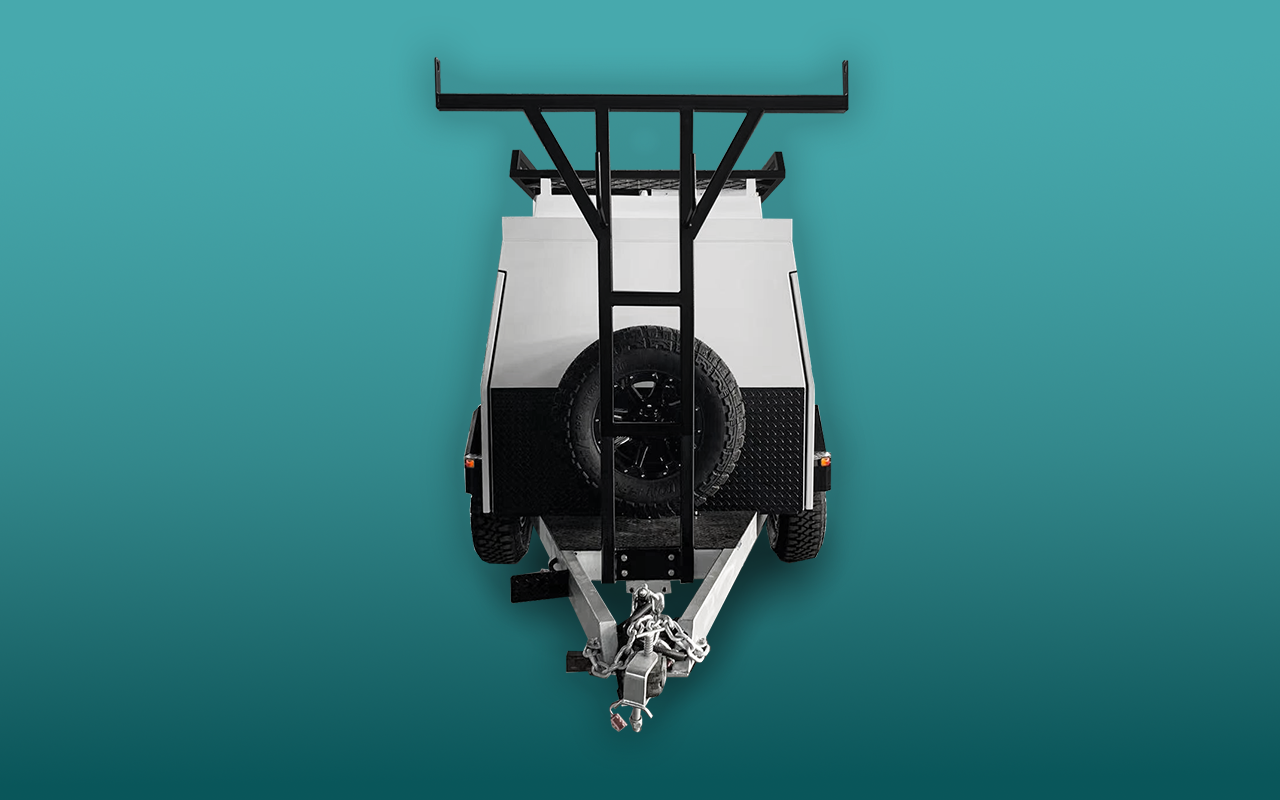

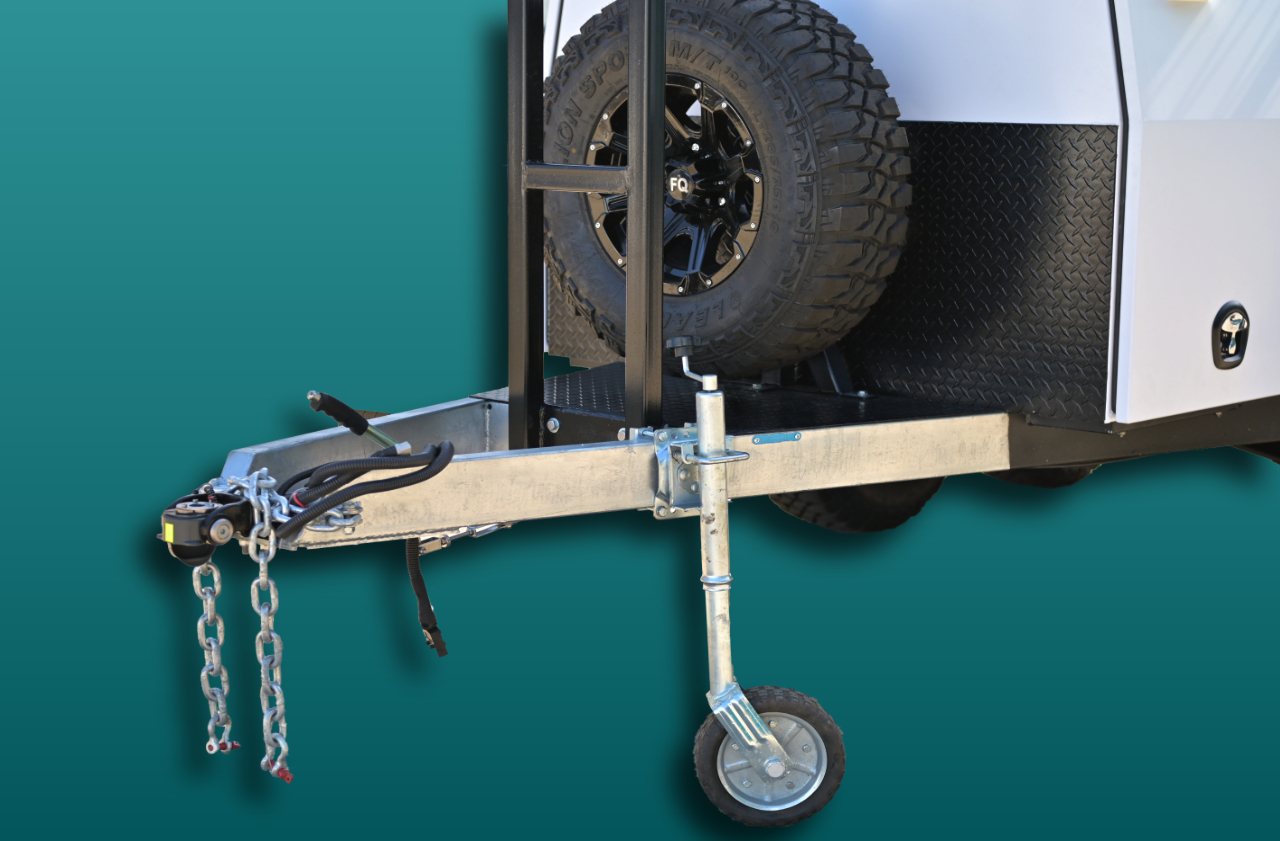

Drawbar

Galvanized super strong drawbar made out of 50x120x4mm industrial strength steel. Fitted with high quality jockey wheel and 3.5T off-road coupling.

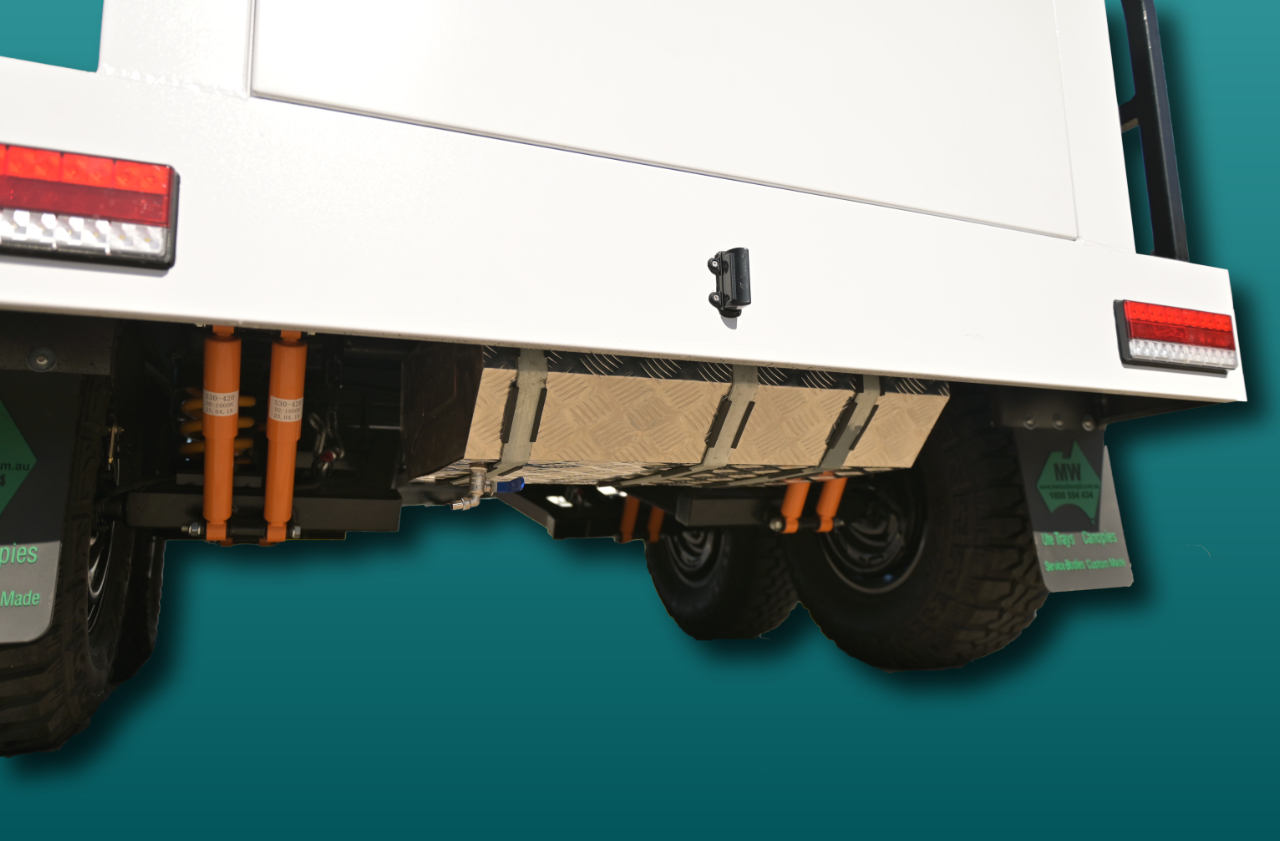

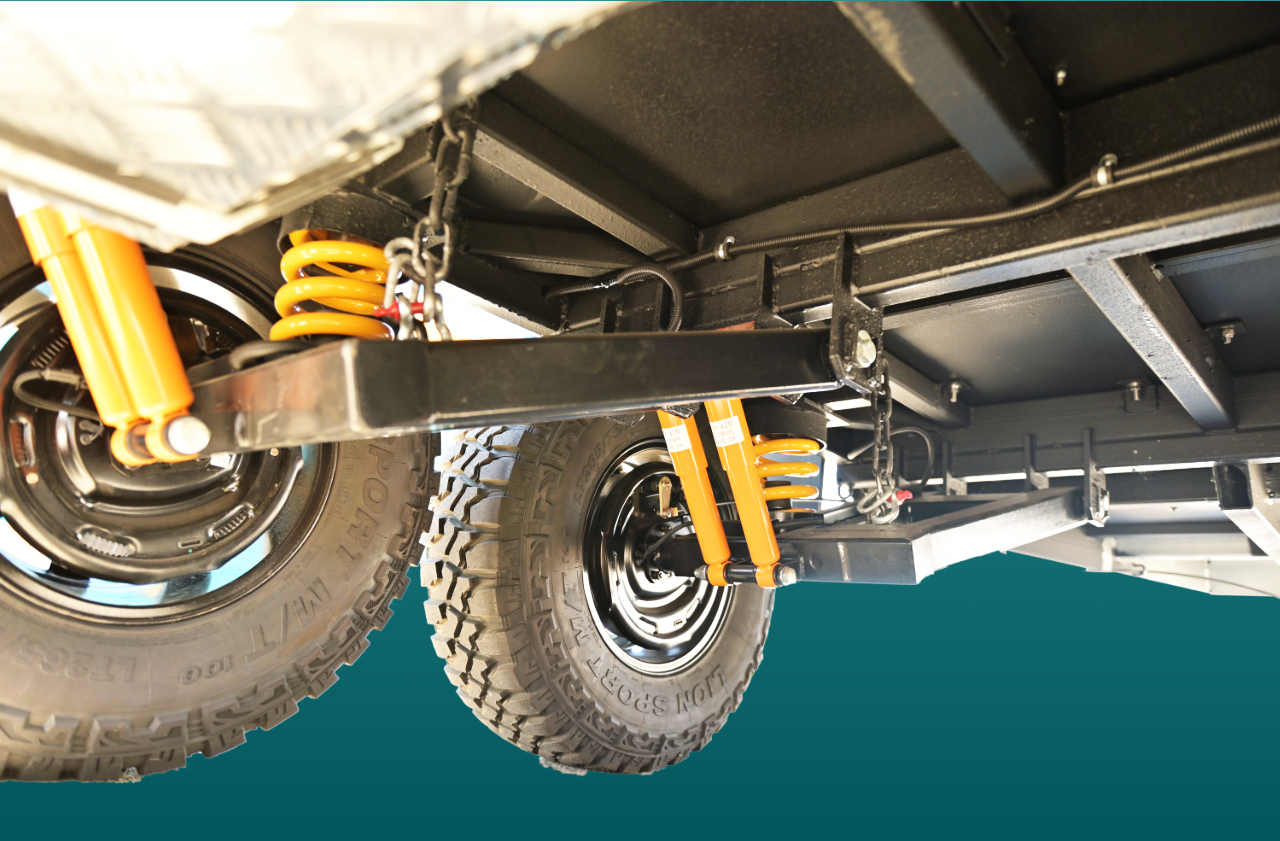

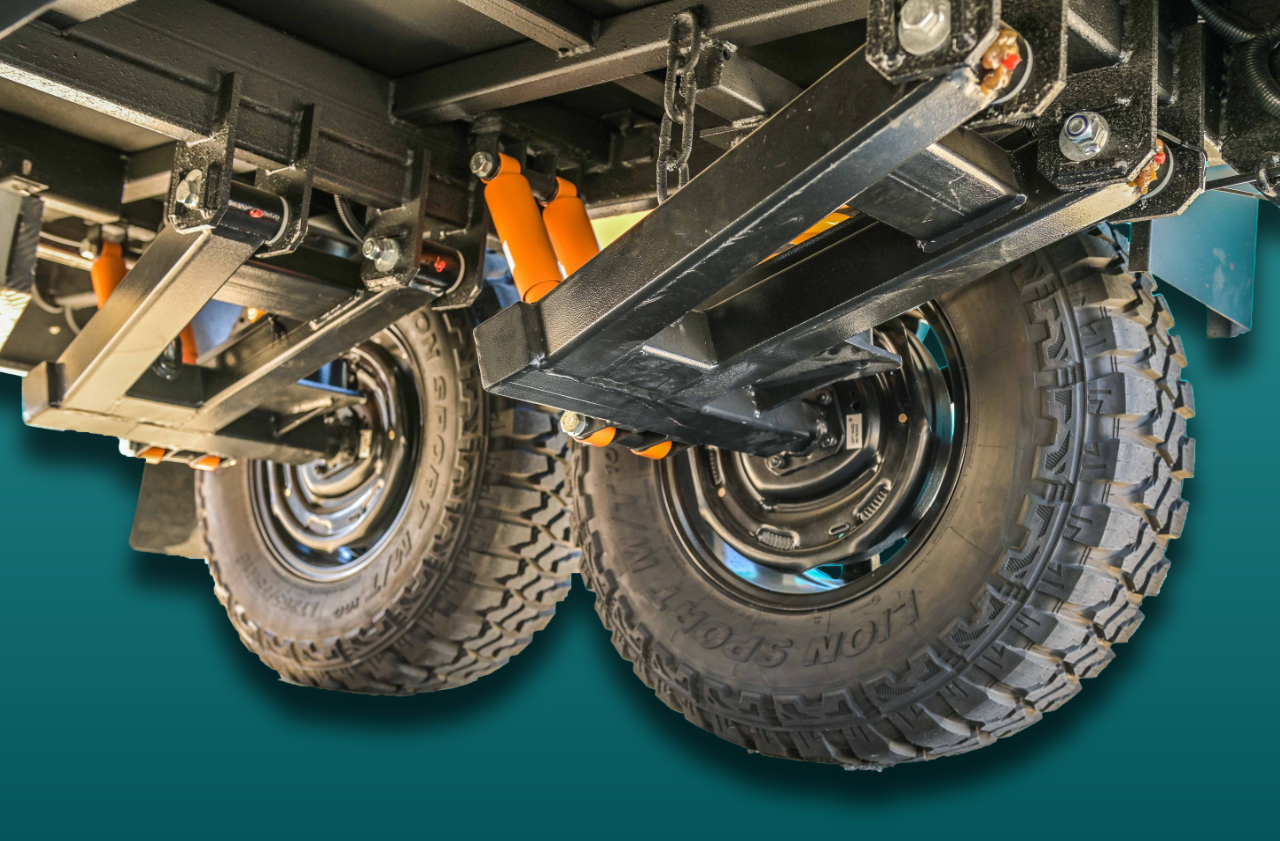

Independent Suspension

Independent suspension with four sets of twin shock absorbers built in as standard feature. There is not much this MW tradesman trailer cannot handle.

Electrical

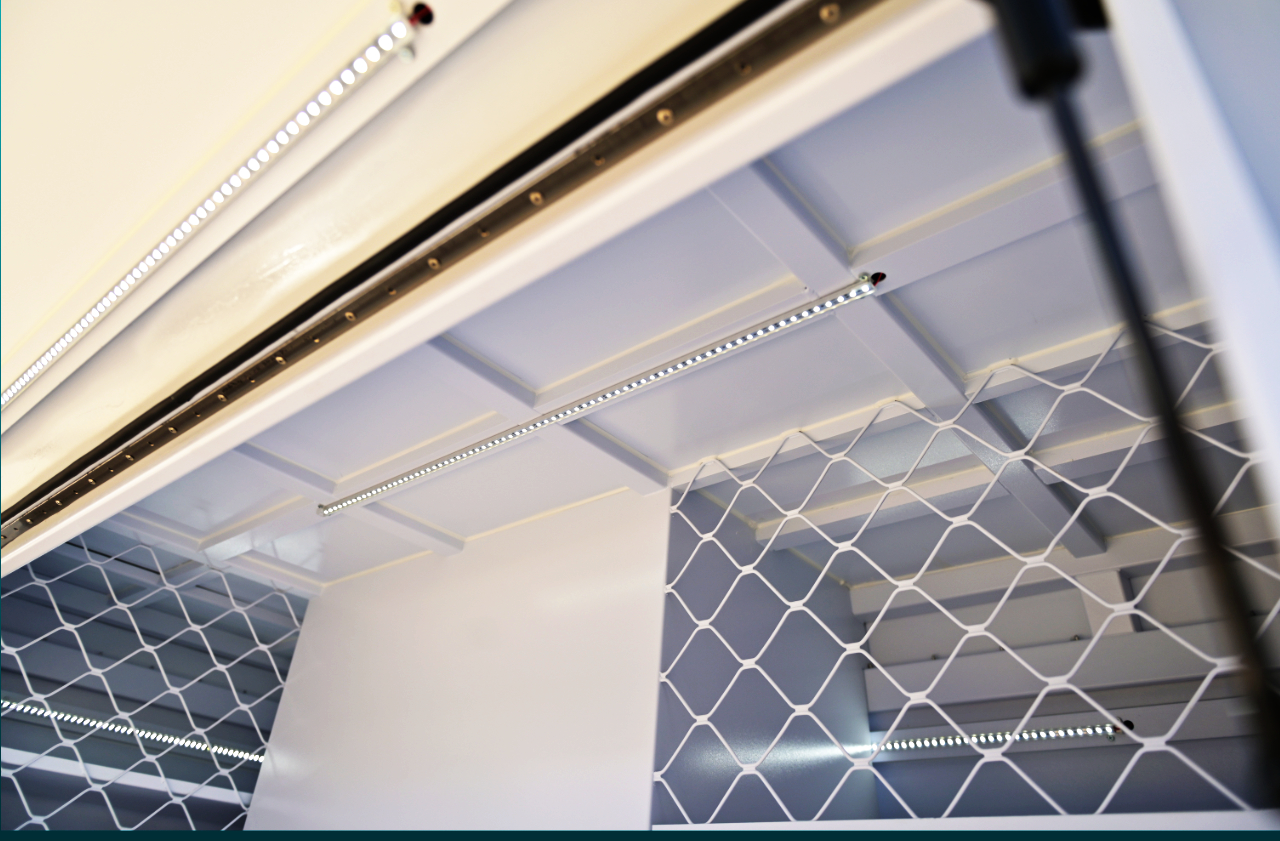

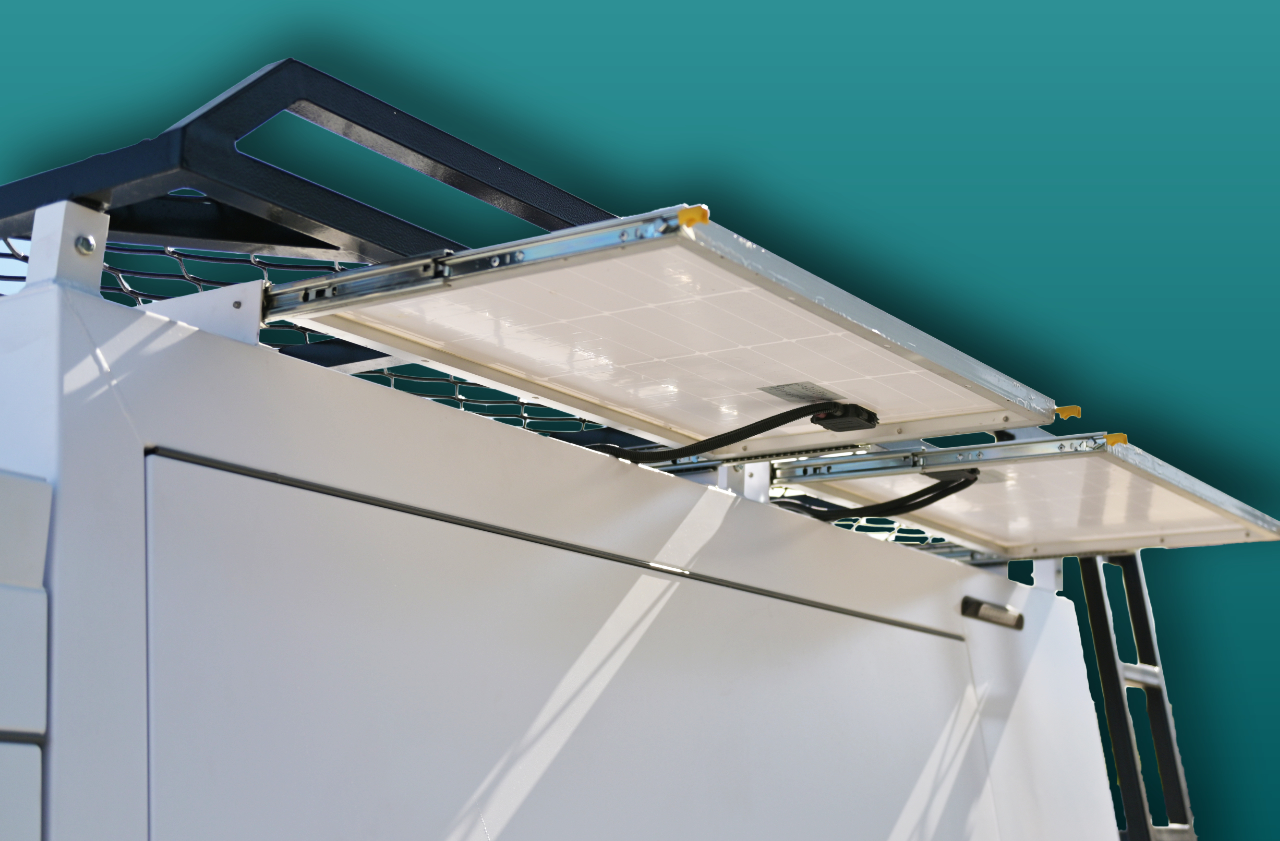

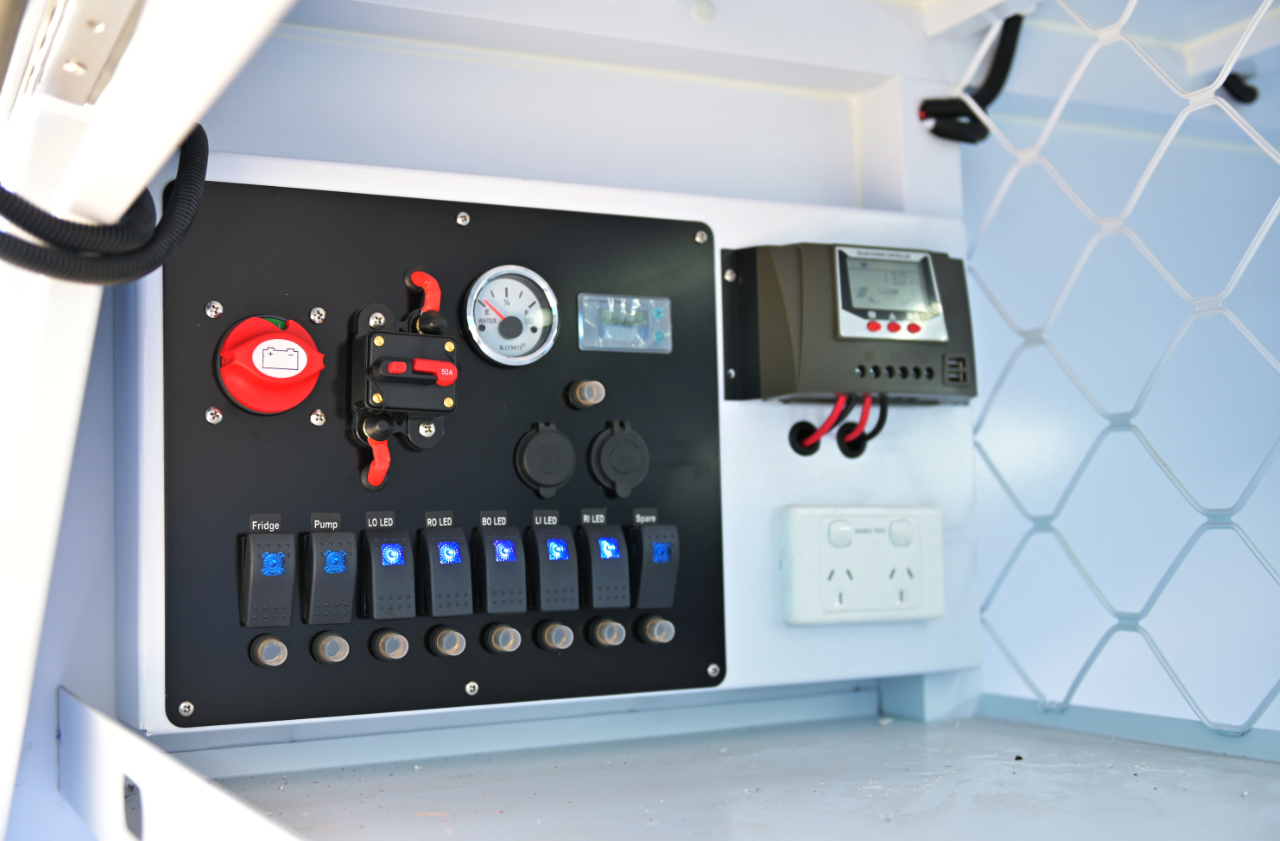

This trailer is fully equipped with dual battery system. Central locking on all doors with remote control. 2x135Ah BSL lithium battery (270Ah). 2x 80W solar panel (160W) with 30A solar controller. AC charger 20A. Enerdrive 2000W PSW inverter. Electrical control panel with all lighting switches, including USB ports & cig socket, swtich for water pump. Total of 5 strip LED lights in main body. Two 240V GPOs inside and additional two GPOs outside on passenger side. LED tail lights also included as standard.

Body Construction

Trailer box body and drawbar made out of 3.0mm thick heavy duty aluminium. This means massive weight saving and rust free, in comparison with steel trailers. We understand the importance of weight carrying behind your vehicle and durability of this trailer for your work and play purpose. Entire box body and drawbar are fully seam welded and sealed for maximum weather and dust resistance. Entire box body and drawbar powder coated white on full exterior and interior skins.

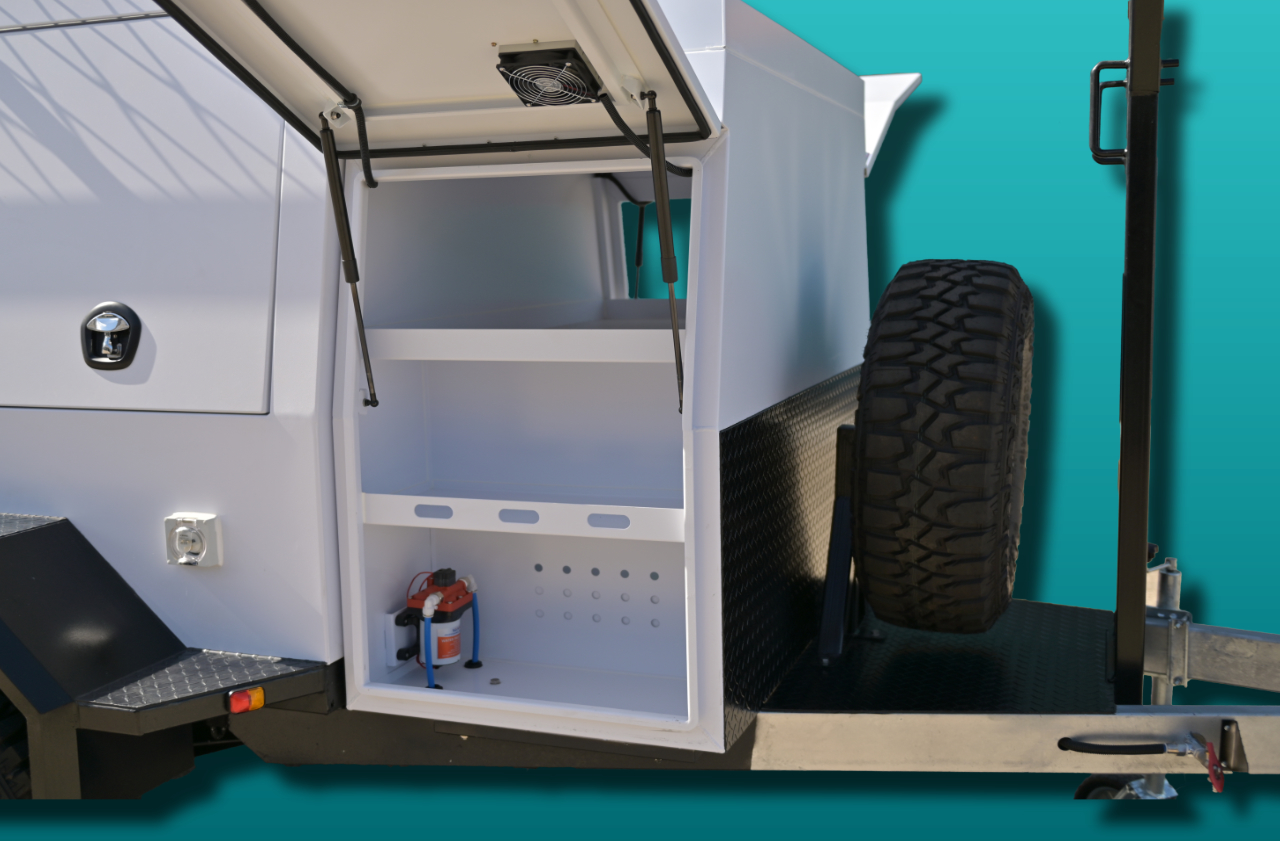

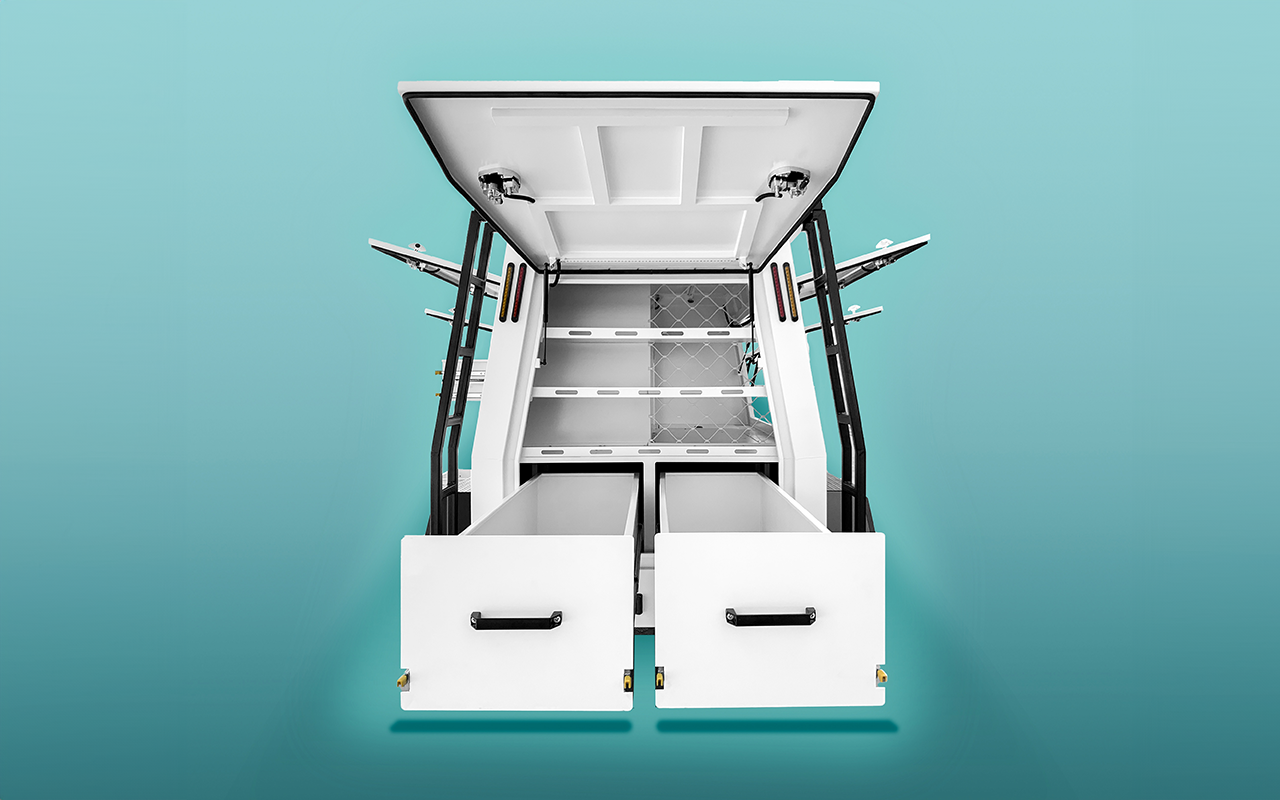

Storage Space

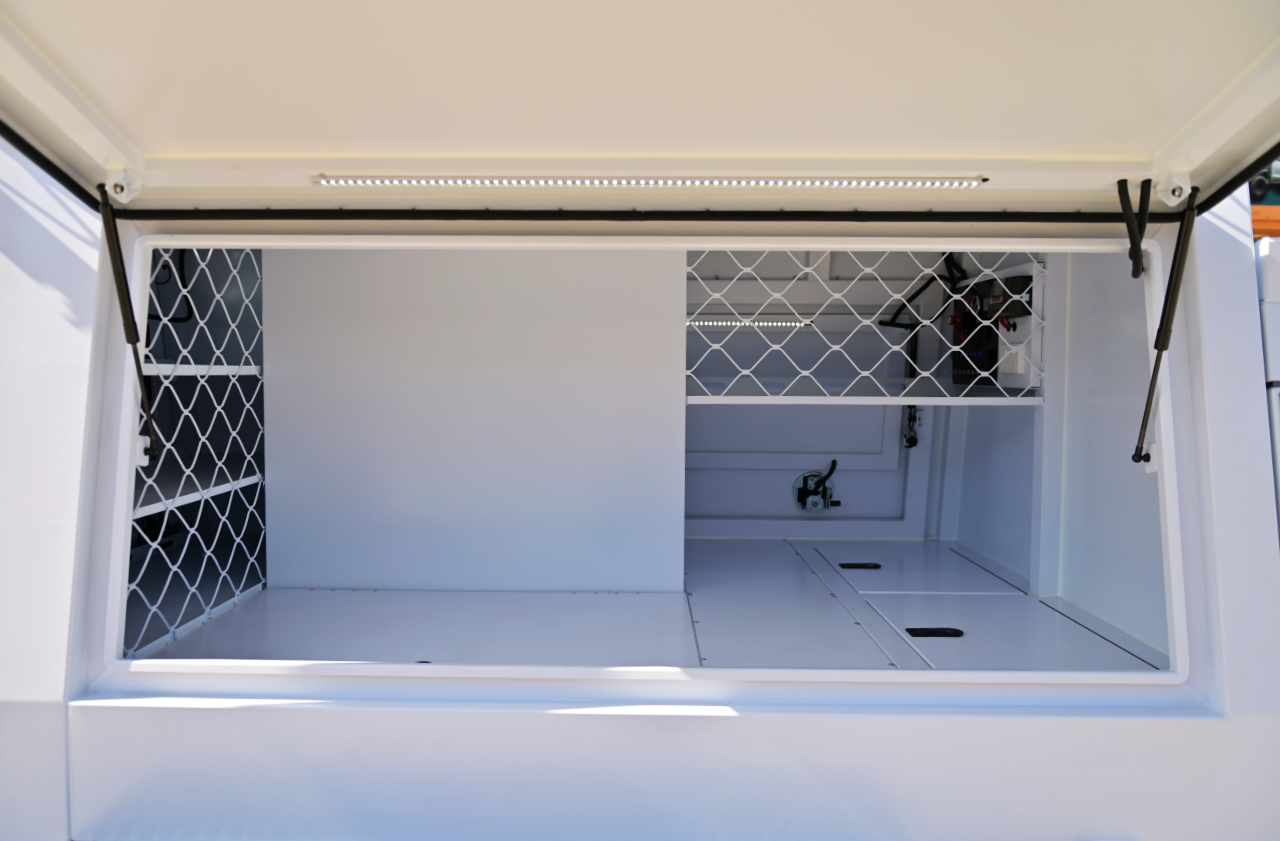

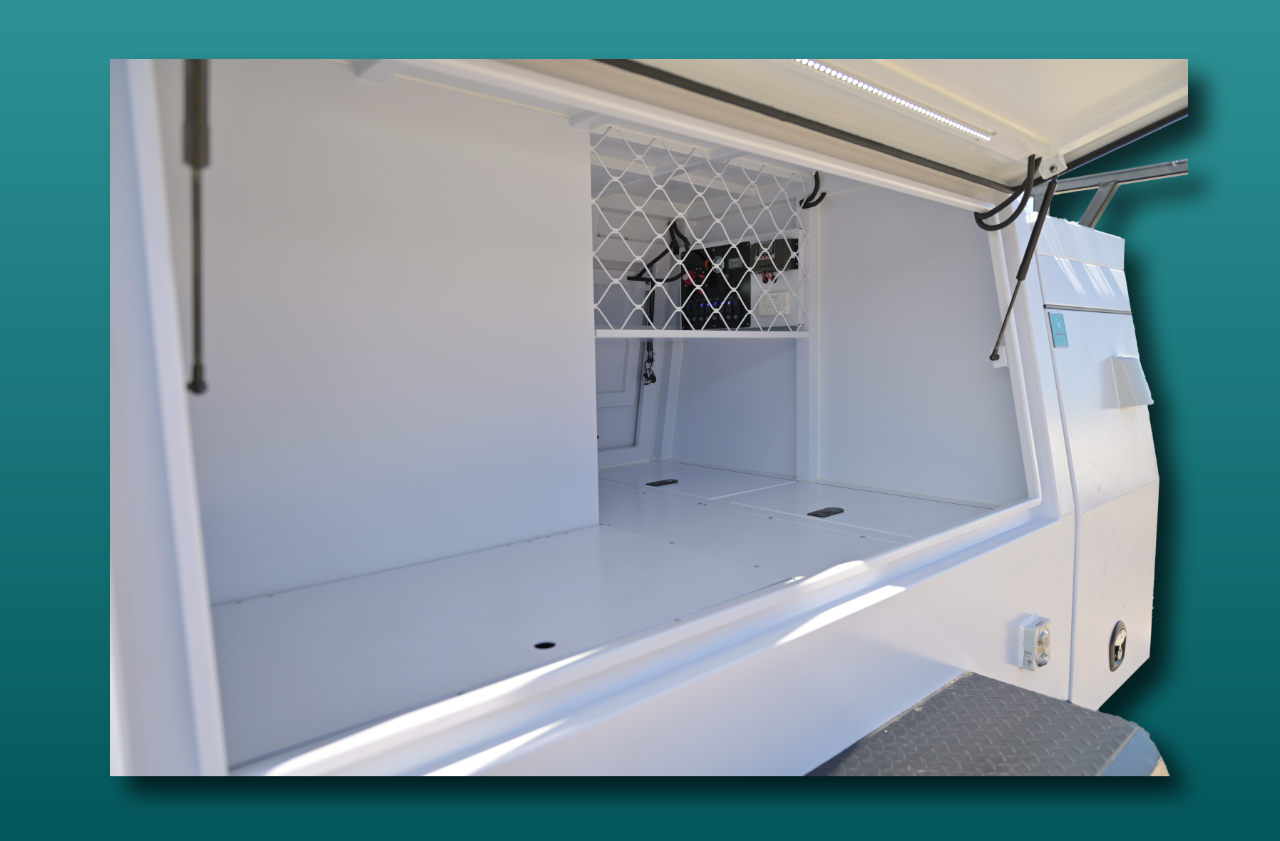

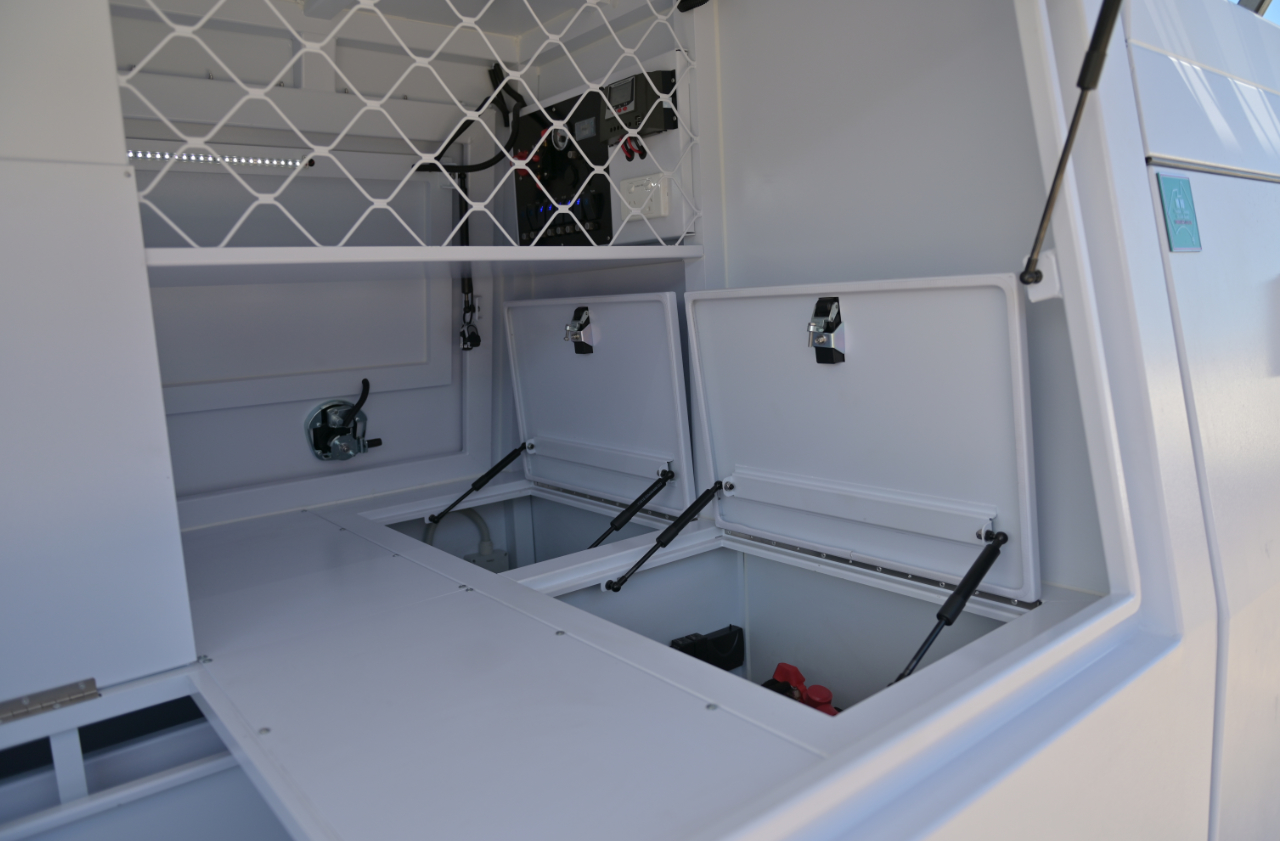

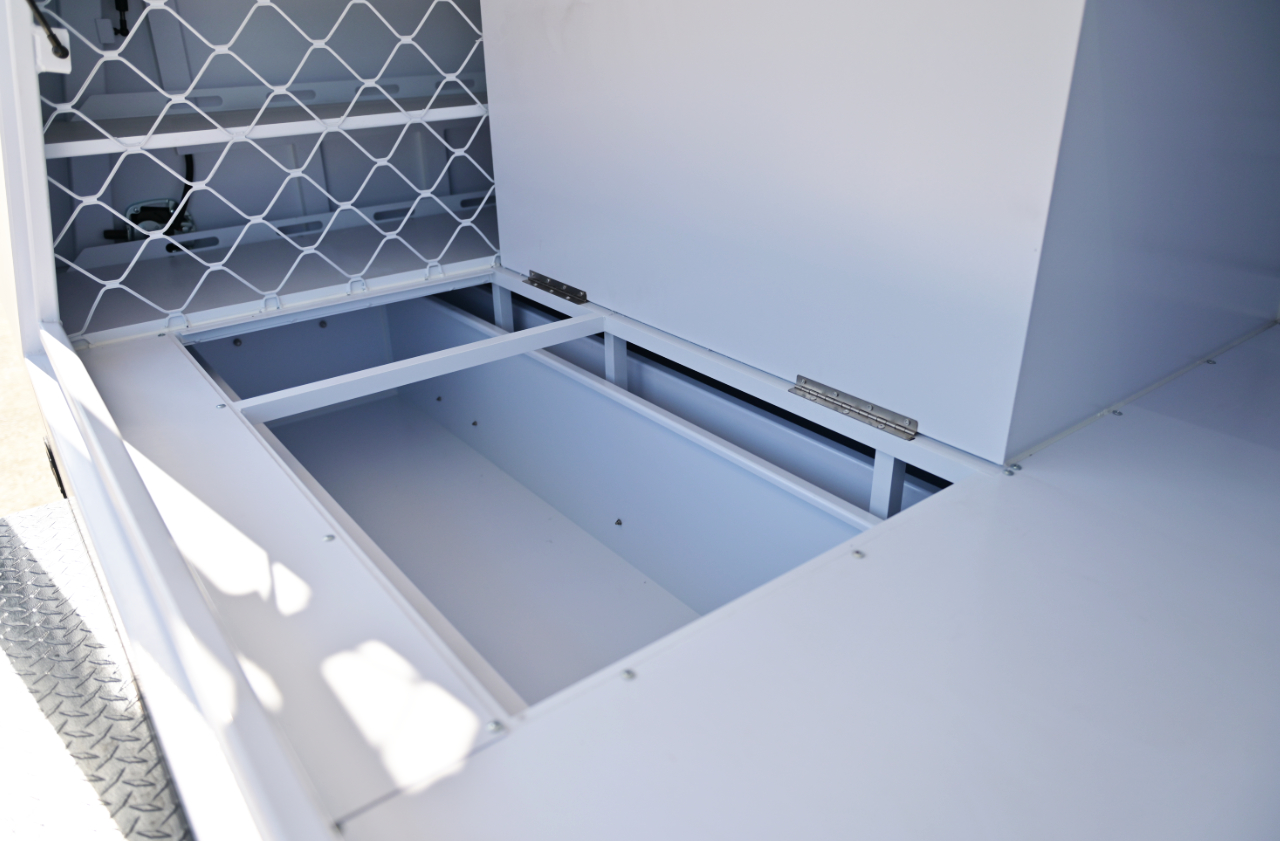

MW Tradesman trailers are equipped with internal storage drawers and shelving. Fully utilise your tooling and storage arrangement to the best. Please refer to photos for more detailed layout of storage and drawers.

More Features and Water

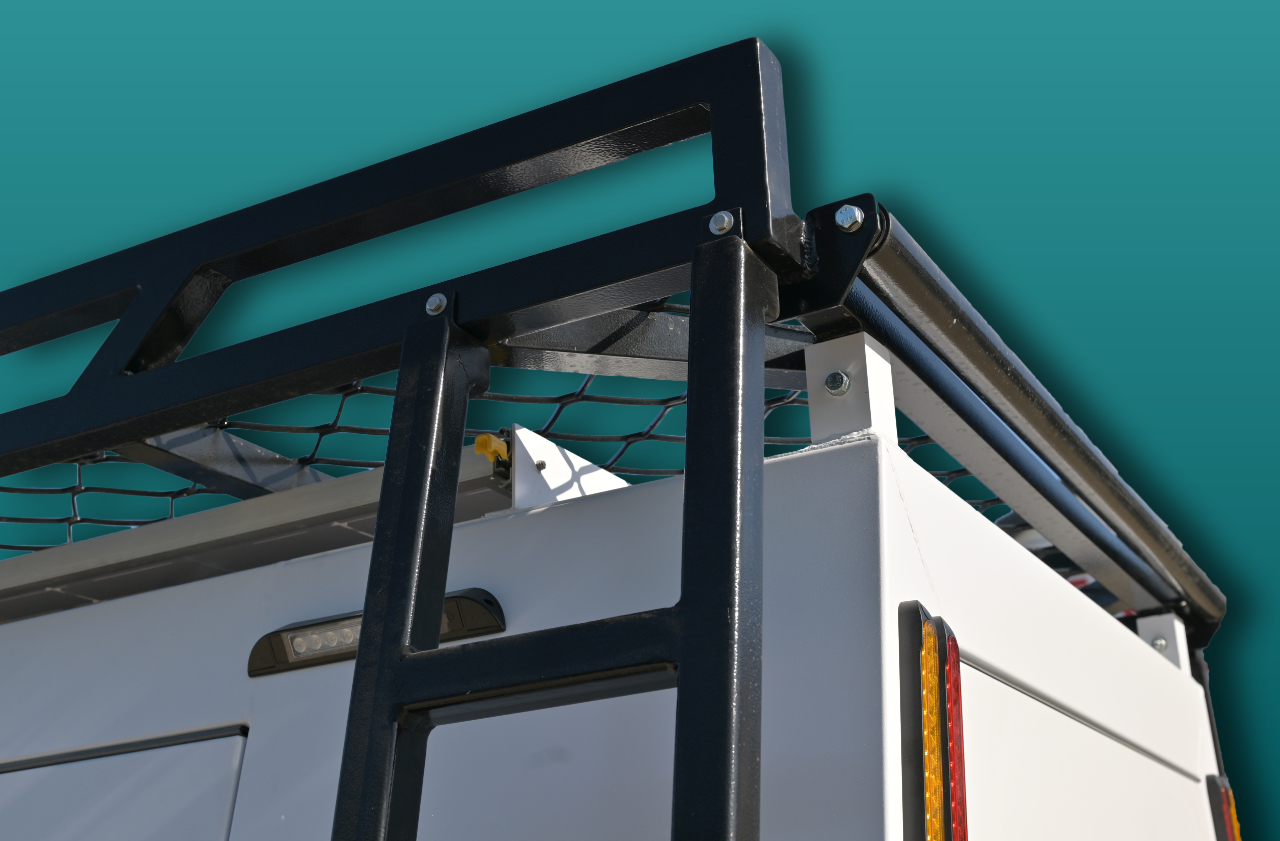

Drawbar extension heavy duty ladder rack matching height with trailer roof rack. 100L stainless steel water tank with Seaflo water pump. 2450mm long heavy duty roof rack with mesh grill flooring and roller at rear, rated for 250Kgs when trailer is in motion. Step ladder fitted on each side. Spare wheel mounted on drawbar is included.
