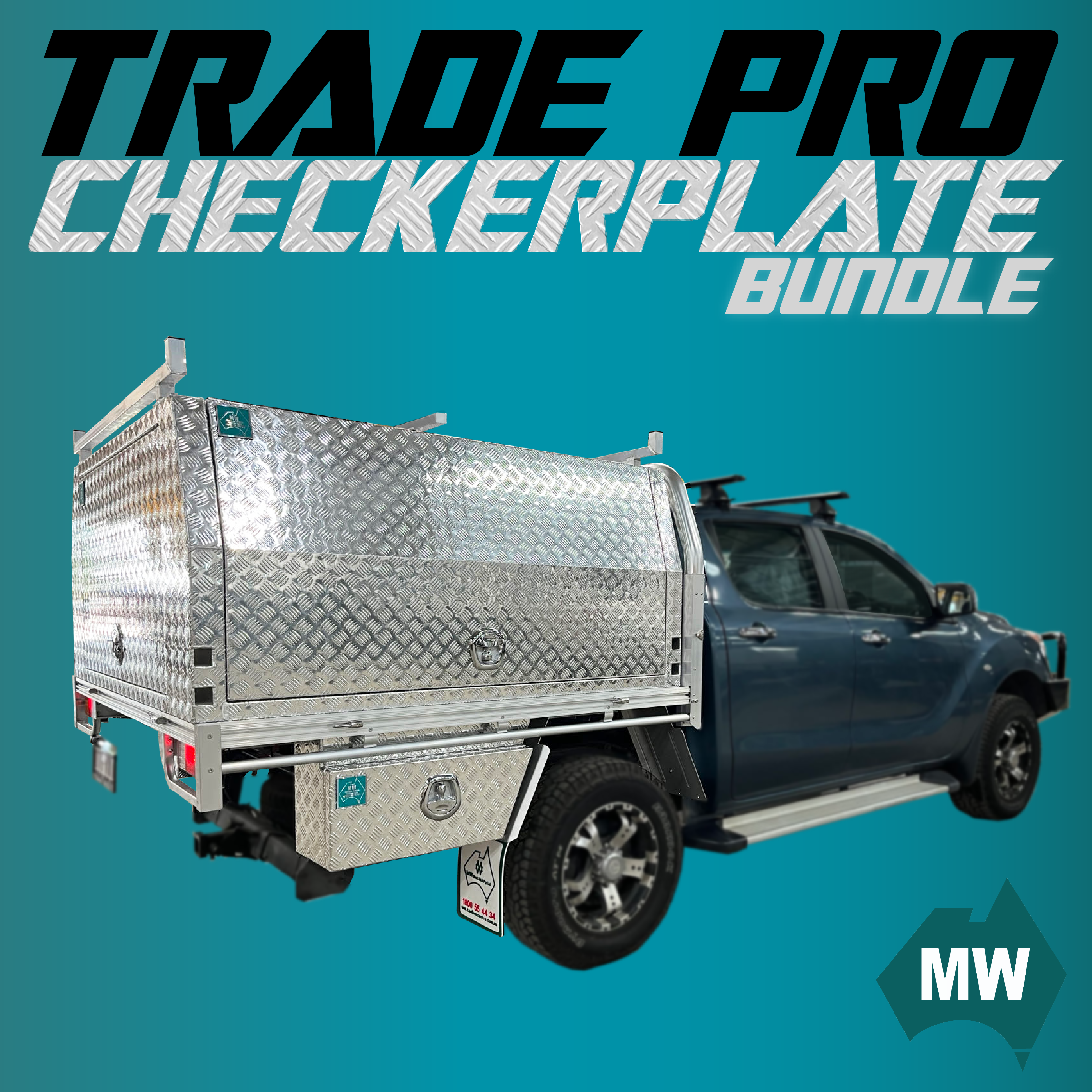

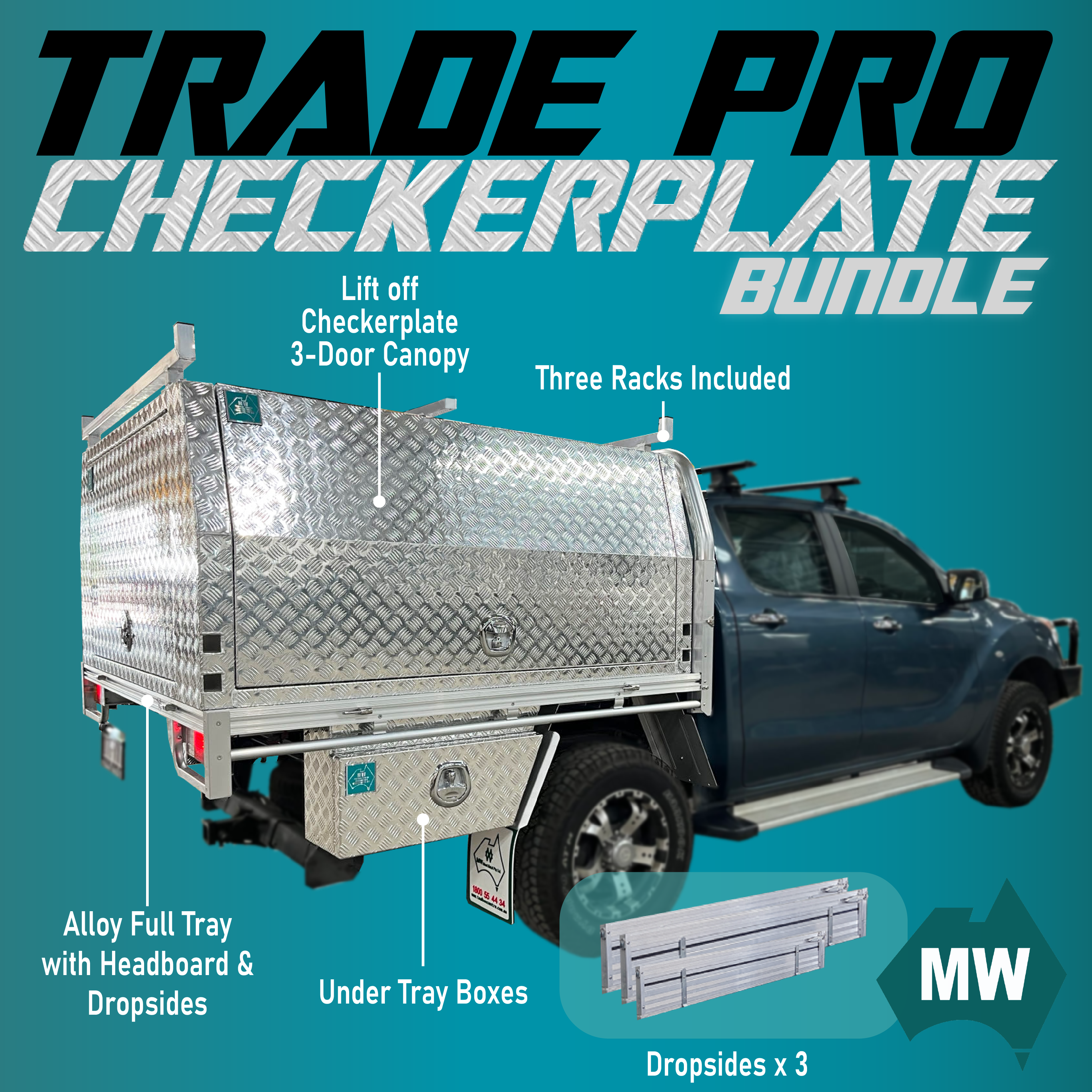

Tray Inclusion:

• Heavy duty alloy extruded full tray, with corrosion resistant clear coating.
• Full Tray includes headboard tubing, headboard panel, headboard mesh protector, set of 3x drop sides.
• Tray Deck Dimensions: Dual Cab – 1800L x 1860W; Extra Cab – 2100L x 1860W; Single Cab – 2400L x 1860W
• Pair of checker plate 750mm under tray toolboxes included.
• LED tail lights with taillight protectors included
• Standard mud guards and mud flaps included.
• Full-length heavy duty tie-down rails on both sides
• Tray deck load rating: 1500kgs
• DIY installation kit included.

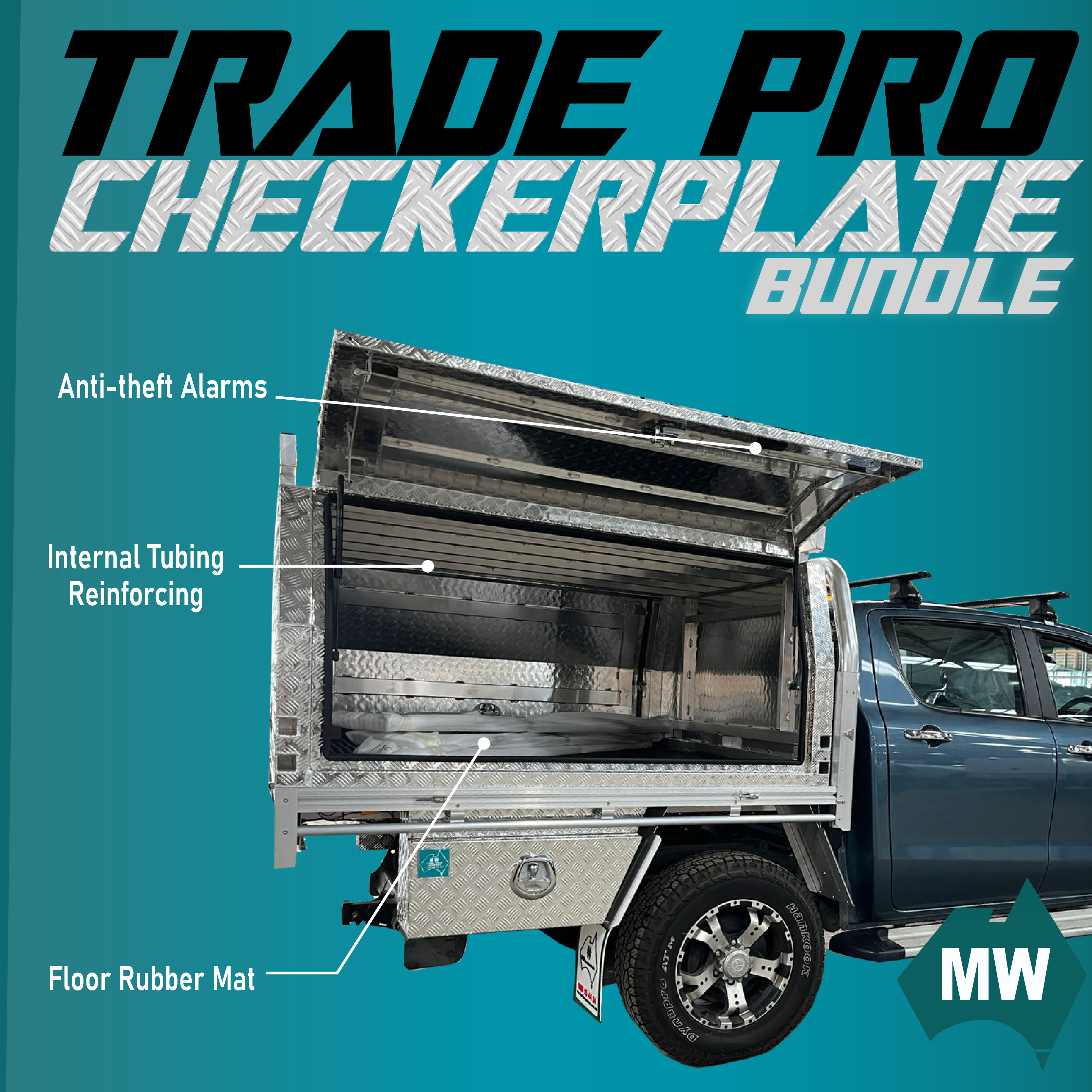

Canopy Inclusions:

• 2.5mm Heavy duty tensile Aluminium Checker Plate.
• Canopy Dimensions: Dual Cab – 1800L ; Extra Cab – 2100L; Single Cab – 2400L. Width: 1770W. Height: 850H
• Roof Racks x3 included (removable).
• Jack-off structure built in. (Jack-off legs sold separately)
• Rubber floor mat included
• Anti-theft door alarms included
• Designed with 2 side doors and rear door
• Fully TIG welded, complete weather proof
• Full Length Stainless Steel Piano Hinge & Gas Struts Support.

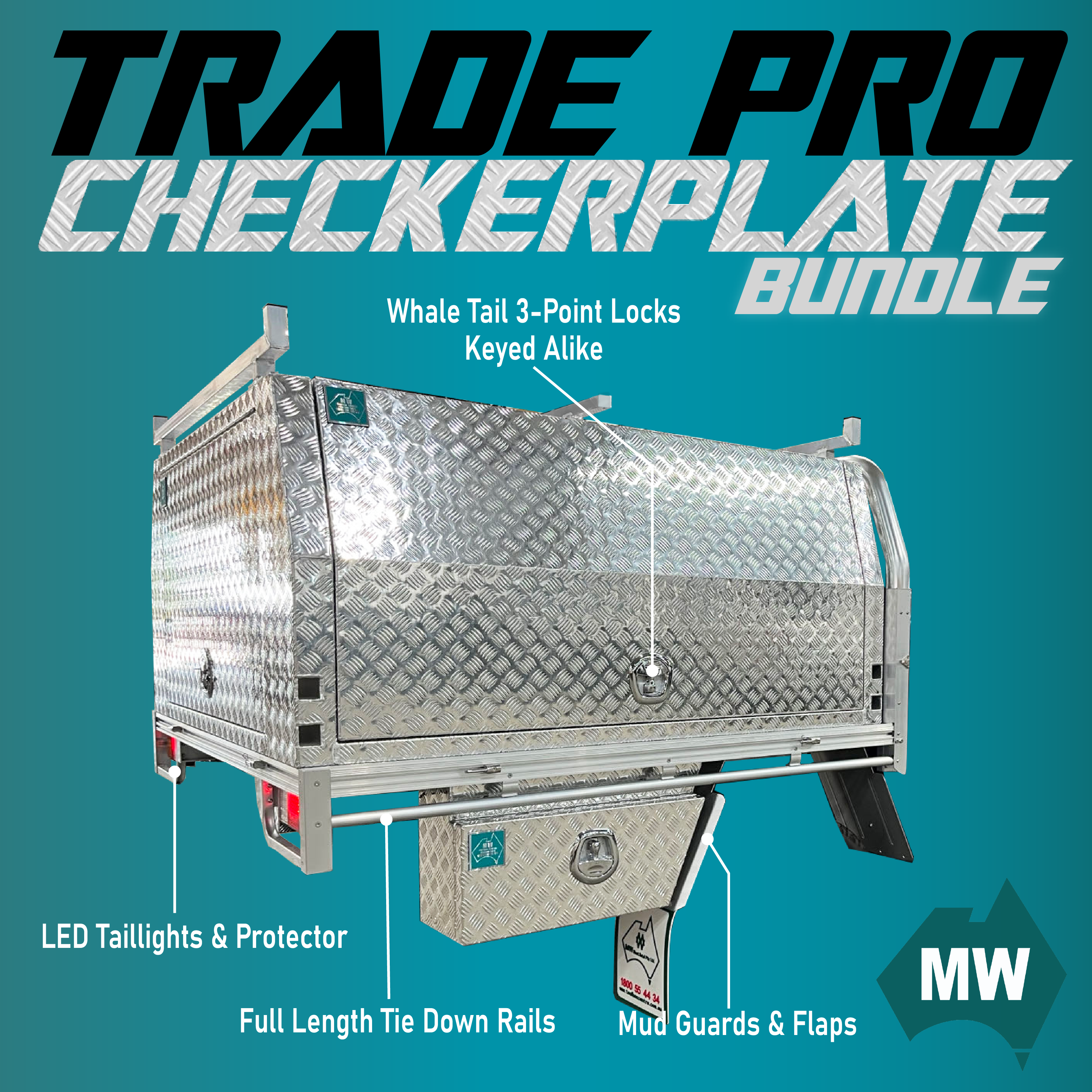

• Premium Whale Tail Three Point Locks, keyed alike.
• Internal solid box tubing reinforcing on roof and front wall. All doors reinforced with alloy U-channels.
• Product image for illustration purposes only. Actual product may vary.
• Dynamic load rating of roof racks depends on a wide range of factors such as terrain, driving behaviour, and physical parameters of the load.
• DIY installation kit included

Optional Extras:

• Installation at MW Archerfield factory, or at other participating locations: $599 (Installation includes full fitment of tray and canopy, canopy bolted down to tray; tub removal, camera&sensors relocation) Please note Blind Spot Radar Reloction cost extra $ 450
• Add Underbody drawer sizes available: 950mmL: $ 1000; 1250mmL: $ 1,200; 1550mmL: $ 1,350; 1750mmL: $ 1,500
• Add underbody water tank 45L with plumbing service
• Upgrade to 2400mm Heavy Duty Tradesman roof rack (with side rails and mesh flooring): $ 750
• Upgrade to Central Locking actuated whale tail locks, wired up to separate remote controls: $ 1,000
• Add jack-off legs (set of 4): $ 600
• Add jack-off latches (set of 4): $ 150

Suitable Vehicle:

• Toyota Hilux dual cab all models
• Toyota Landcruiser dual cab (canopy height will not reach top of cab roof)
• Ford Ranger dual cab all models
• Isuzu Dmax dual cab all models
• Mazda BT-50 dual cab all models
• Nissan Navara dual cab all models
• Holden Colorado dual cab all models
• GWM Cannon dual cab all models
• Mitsubishi Triton dual cab all models
• LDV T60/T90 dual cab all models
• Ssangyong Musso dual cab all models

Other Notes:

• DIY installation kit included.
• This product can only be installed by qualified installers. Please contact your local MW store to arrange installation with us, if you are unable to install yourself.
• This product is available for shipping nationwide,  shipping will be calculated once added to cart & postal address filled.
• Price for Brisbane Metro Area Only and GST Inclusive.
• Rockhampton store and Townsville store pickup costs $500 extra for this product as transport surcharge.
